Cargo is the line of Extra Large sized painting systems that can be custom configured to accommodate any object or vehicle on the road, such as trucks, trains, subways, civil and military aircraft, boats, ships and even wind turbines.

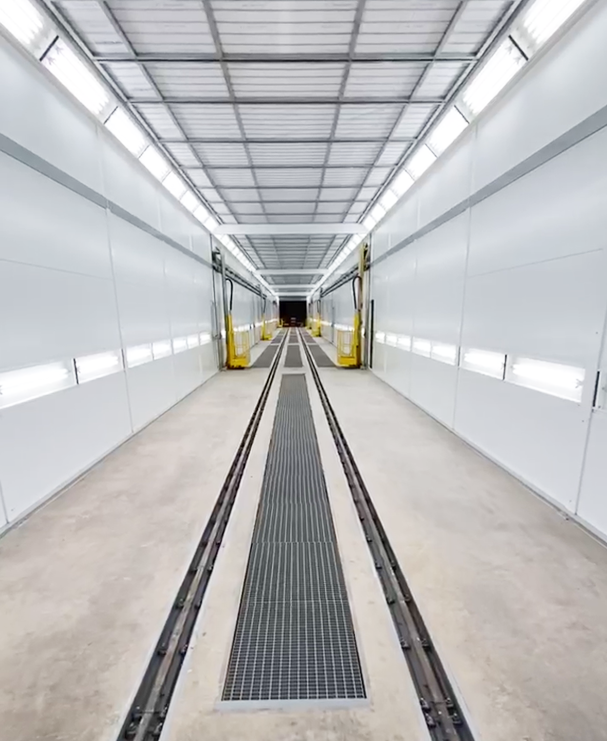

Modularity and self-support

Thanks to their modular design, USI ITALIA Cargoes can be of any size. They can be installed as stand-alone solutions or integrated into existing production lines.

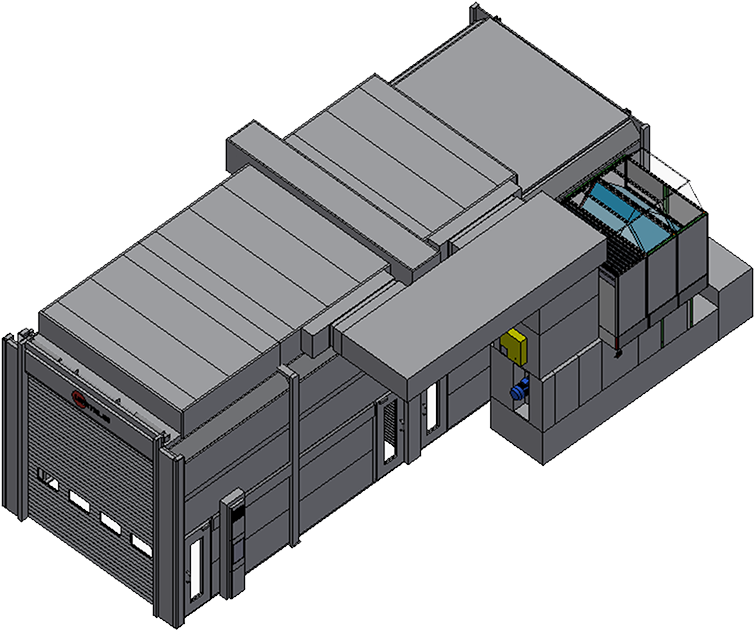

The self-supporting logic of each module allows, if necessary, the housing of the thermo-ventilating units above the system, making it possible to combine performance with saving space.

Distribution in follow me logic

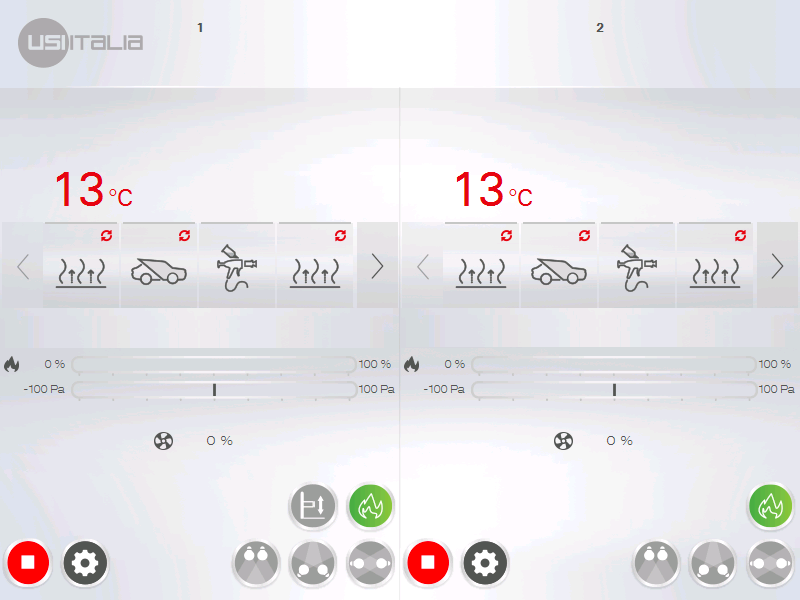

Advanced system management via industrial touch screen PCs optimises the air distribution logic. Through an intelligent zone ventilation system, the flow will only be directed to the area where the operator applies the coatings.

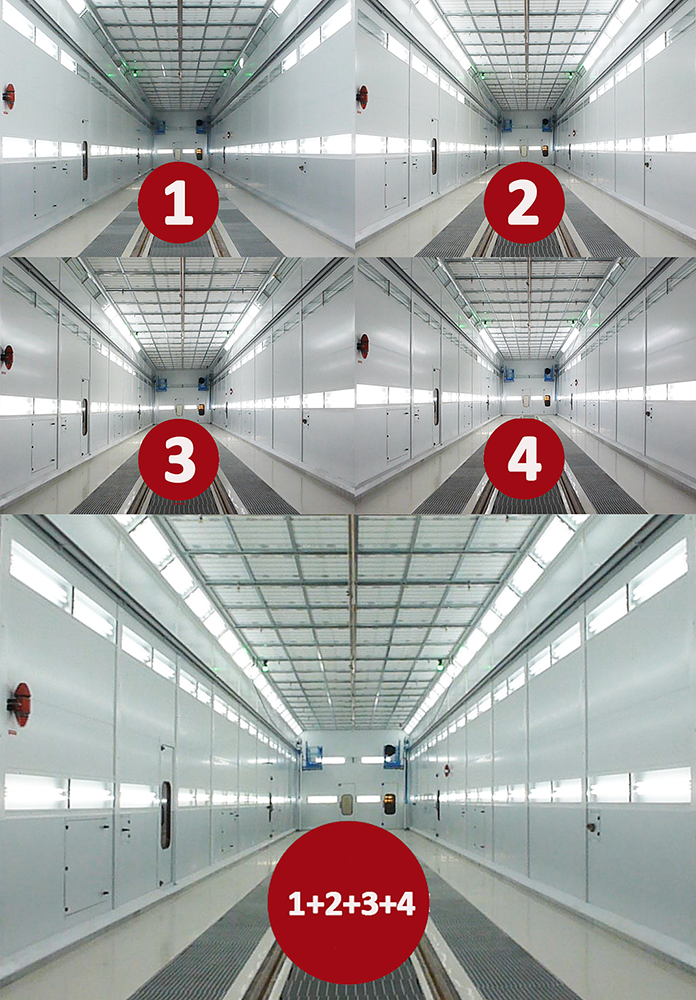

This intelligent use of energy will reduce the number of units needed to move air. The lighting itself can be configured in follow me mode, activating only in the area where the operator is located.

Highly efficient working system

Thanks to a revision of the aeraulic circuit and the use of lightened materials, USI Italia was the first to offer the market very high efficiency working systems

Optimal air management

Moving air is not enough. Especially when dealing with large dimensions, you have to know how to manage it, as well as the heating system, in the best way. The exclusive AIR BLUE 2.0 system allows the set temperature to be reached quickly by precisely controlling the progression, stabilising the seal and optimising the heat transfer within the circuit during recirculation.

If required we can provide further customisation by implementing cooling or humidity control systems

Features and Options
  • Compliant with EN 16985 in countries where it is used
  • Single-entry or tunnel configuration
  • With opening systems: sectional, roller shutter, sliding door with curtain closing, door with 180° opening
  • On excavations, on side or rear filter boxes
  • Programmes that can be set and recalled at the touch of a button
  • Diagnostics and maintenance free of charge, fully remotely manageable via touch panel
  • High-efficiency lighting for perfect colour rendering
  • One control point to manage several independent stages
  • Security systems
  • Compliant with ETL legislation in the countries where it is used
  • Responding to Industry 4.0 in countries where it is required
  • High-efficiency LED lighting
  • Alternative heating systems using hot water batteries and electric resistance batteries
  • CARGO industrial cabins can be integrated with 3-way operator trolleys (either hydraulic or pneumatic)
  • They can have a filtering ceiling with a central trapdoor opening to allow the passage of the crane cable
  • Configurations with conveyor
  • Differentiated filtering system depending on the industry or processing required
  • Pre-heating systems by means of conventional heat recuperators or with independently activated by-pass.


3-axis operator platforms

Mobile platforms with electro-hydraulic power supply units

Read more
USI LIFT component

Lifts (USI LIFT 3500)

The retractable electro-pneumo-hydraulic scissor lift can be combined with spray booths and preparation areas

Read more
Localised dust extraction systems

Localised suction panels

USI Italia's solution for extracting sanding dust

Read more
For more information, download the document

USI Italia provides its customers with in-depth technical documents on its products.

Click below and download the brochure of this product.

If you do not find the information you are looking for, do not hesitate to contact us.
